2016 Year Used Howo Tipper Trucks With 30 Tons Loading Capacity
Introduction of Used Howo Tipper Truck
2016 year used HOWO tipper truck with around 30,000km mileage, could serve for the road transportation, mining and construction. The truck tire model is 12.00R20 radial, and new tire is optional. All parts will be well tested before shipment and confirm the truck quality with no issue.
Dump Truck Types
The dump trucks are divided into two types: rear tipping and lateral tilting. Through the control system, the piston rod is controlled, and the rear dumping is more common. The piston rod is pushed to tilt the carriage, and the bidirectional dumping is rare. As the loading compartment can automatically tip and discharge at a certain angle, the time and labor of the dumping can be greatly saved, the transportation cycle can be shortened, the production efficiency can be improved, and the transportation cost can be reduced. This is a commonly used transport vehicle.
USED HOWO TRUCKS SPECIFICATIONS
| Truck Model | ZZ3257N3847C(ZZ3257N3447A1) | | Driving Style | Left Hand Driving(RHD is optional) | | Dimension(Lx W x H)(unloaded)(mm) | 8265x2496x3490 | | Cargo body size (L*W*H, mm) (mm) | 5400x2300x1500mm 18.63m3 | | Cargo thickness(mm) | Bottom:8mm, Side:6mm | | Lift type of Carriage | Middle lifting system | | Approaching angle/Departure angle(°) | 20/26 | | Overhang(front/rear) (mm) | 1540/1750 | | Wheel base (mm) | 3625+1350 | | Max speed(km/h) | 78 | | Curb weight(kg) | 12270 | | Loading Weight(kg) | 30,000 | | Fuel tanker capacity(L) | 300 | | Clutch | Single-plate dry clutch Φ430mm | | Engine Model | Fuel type | Diesel | | Horse Power, max(kw/rpm) | 371HP | | Emission | EURO II | | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection | | Transmission | Model | HW19710, 10 forwards and 2 reverse | | Brake system | Service brake | Dual circuit compressed air brake | | Parking brake | spring energy, compressed air operating on rear wheels | | Auxiliary brake | Engine exhaust brake | | Steering system | Model | ZF8118 hydraulic steering with power assistance | | Front axle | HF9 , Steering with double T-cross section beam | | Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | | Color | Optional (White ,Red ,yellow ) | | Tyre | 12.00R20 radial tires, 10+1pcs | | Electrical system | Battery | 2X12V/165Ah | | Alternator | 28V-1500kw | | Starter | 7.5Kw/24V | | Cab | HOWO76 Cab , single sleeper with air conditioner | |
Shipping Service
The main issue of ocean transportation is rusty issue. To avoid this problem, all our used HOWO tipper trucks will be sprayed wax first and then cover the rain clothes. Meanwhile, we will find quick vessel for customers to shorten the transport time.
Shipping Method
Bulk Ship
Flat Rack Container
Ro-Ro Ship
Our Workshop:
Truck Details

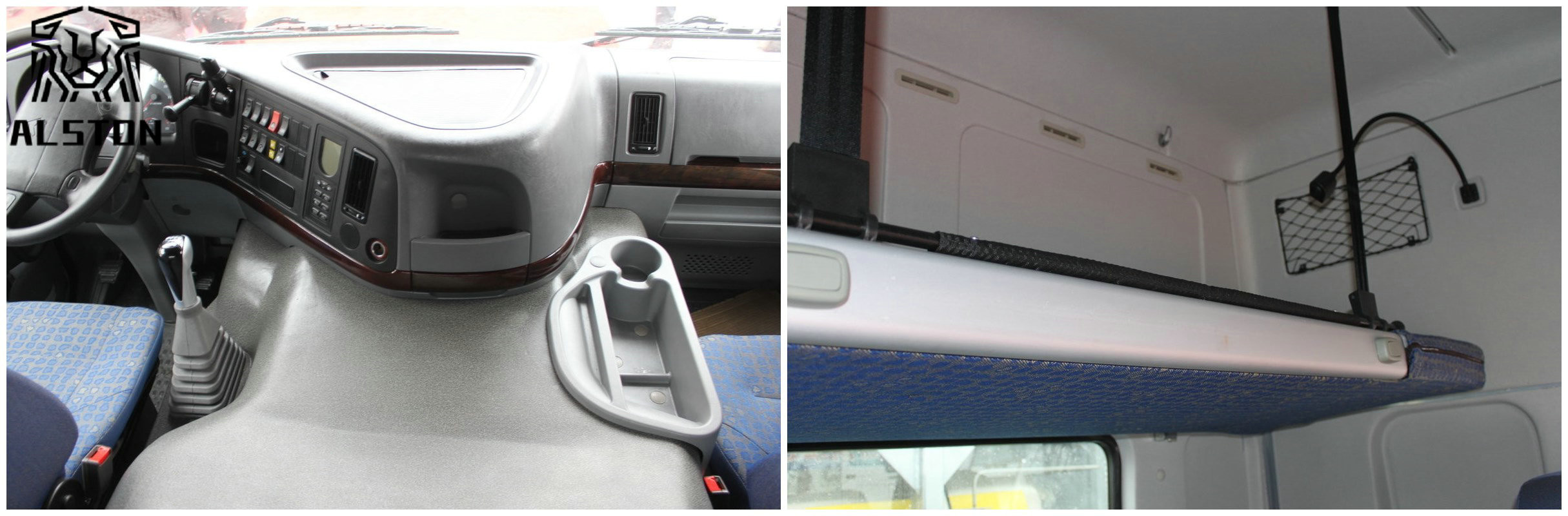

1.New HW76 cab, with one sleeping bed, Air conditioner, and new interior. Four-point cab air suspension system can effectively reduce poor road condition’s impact on the driver.
2.With new air circuit, oil circuit and electric circuit, it can make ECU, Exhaust braking, Idle trim work in a good way.
